Story
An Iron Backbone with a Painterly Soul.
History
Wuhu Iron Painting (tiehua) emerged in Wuhu, Anhui, in the early Qing dynasty (17th century). Tradition credits the blacksmith Tang Peng—also recorded as Tang Tianchi—with transforming forged iron into the language of Chinese ink painting, influenced by exchanges with the painter Xiao Yuncong.
The craft gained wider notice in the 18th century and continues to blend heating, forging, and chasing to evoke brushwork in relief. In 2005, it was inscribed on China’s National-level Intangible Cultural Heritage list.
I. Concept & Design
The starting point is an artistic concept that matches the theme—landscape, birds-and-flowers, figures, or calligraphy—and sets the overall style.

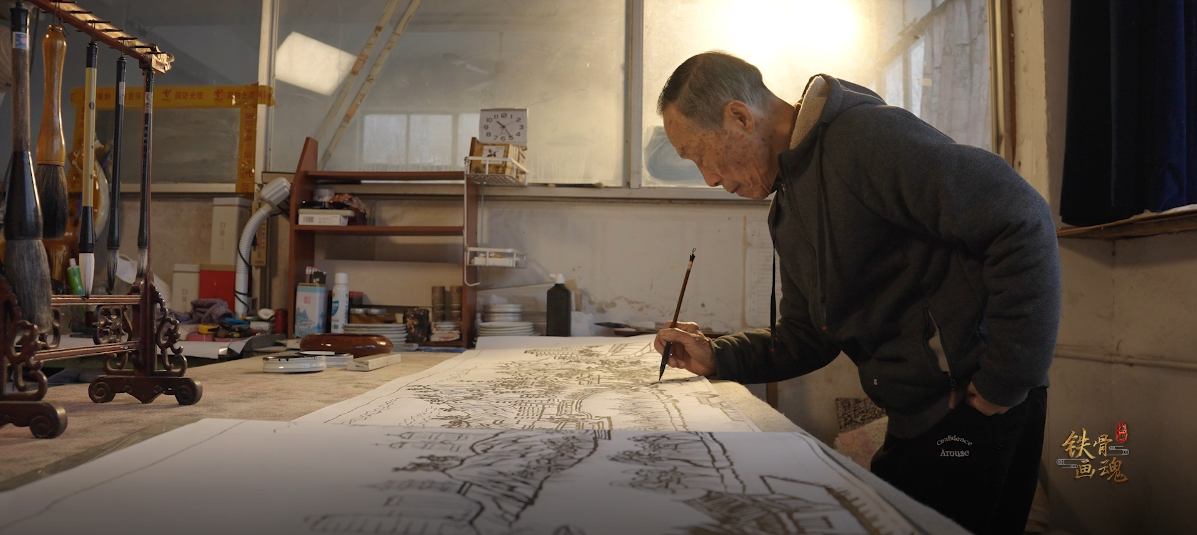

Step 1 — Line drawing (design sketch):

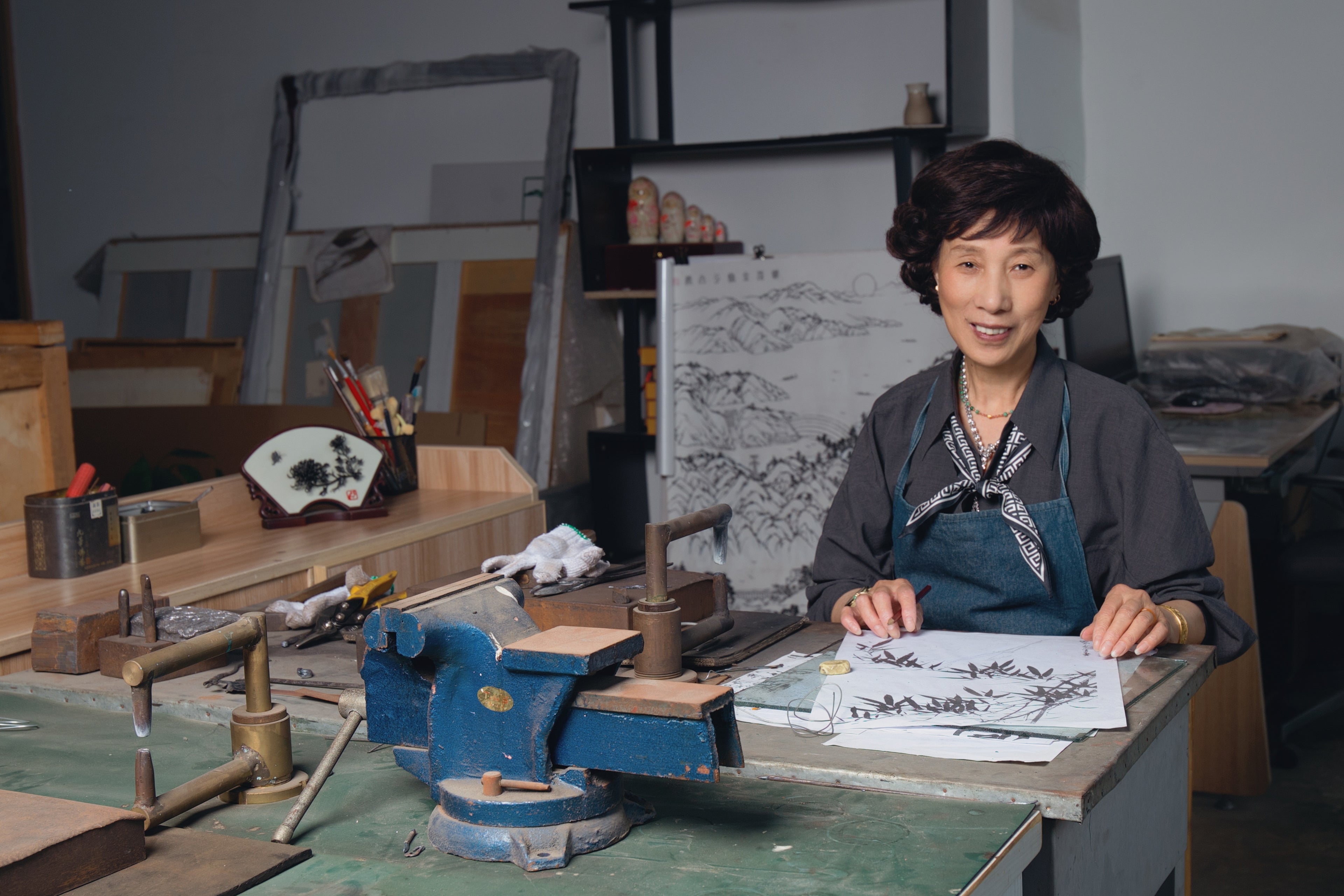

An artist or craftsperson first creates a paper line sketch (baimiao) to define line flow, layered depth (e.g., near-field rocks vs. distant mist), and fine details such as petal textures or branch turns.
Step 2 — Engineering for ironwork:
The sketch is refined to suit the material’s behavior. Slim lines call for thin sheet; weighty rocks require thicker bar stock. The key is balancing “painterly expression” with “workability in iron,” so the forged forms stay faithful to the design.
II. Material Selection & Preparation
Wuhu iron painting primarily uses low-carbon (mild) steel—commonly called “wrought iron” in everyday speech—for its low carbon content (approx. 0.12%–0.25%), good ductility, and resistance to brittleness during forging. Very fine elements (sharp bamboo leaves, slender calligraphic strokes) may use thin sheet or wire.
Step 1 — Rough cutting:
Based on the design, plates and bars are cut into approximate blanks (e.g., petal blanks, branch blanks) to reduce later forging workload.
Step 2 — Surface prep:
Cut parts are lightly ground to remove rust and impurities, ensuring even force transfer during forging and reducing the risk of cracks.
III. Forging & Shaping
This is the core of Wuhu iron painting: transforming flat iron into dimensional forms through thousands of controlled blows. Two complementary methods are used:

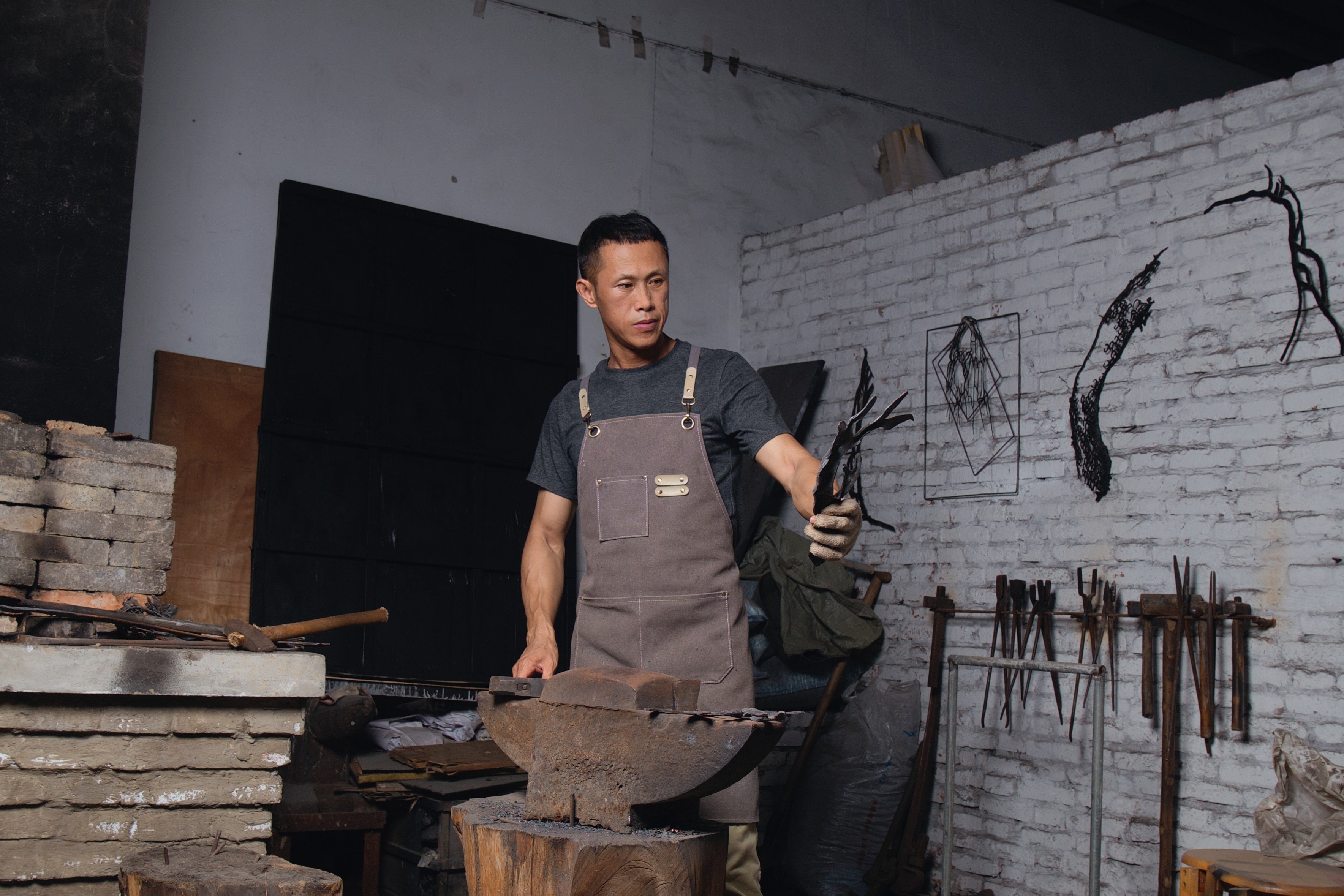

Hot forging
For major shaping (rocks, branches), iron is heated in the forge to about 800–1200 °C (1470–2190 °F) until orange-red. On the anvil, the smith varies hammer force and angle to create rocky relief, graceful branch curves, and even the subtle pleats of petals.
Cold forging / chasing
For delicate parts (bamboo leaves, leaf veins, calligraphic strokes), thin stock is shaped at room temperature using small hammers and chisels/chasing tools. Fine, light blows raise veins, create micro-undulations, and emulate the thickness variation of brushwork.
IV. Welding & Assembly
Individually forged elements (petals, bamboo leaves, branches) are joined to form the full composition. Traditional forge welding (without filler) remains important, while modern gas/electric welding improves stability for complex works.
Traditional forge welding:
Mating areas are heated to welding heat; light hammering consolidates the joint so the base metals fuse.
Modern welding (e.g., oxy-acetylene, electric):
For large landscapes or structural frames, joints may use gas welding with low-carbon steel filler rod. Afterward, seams are lightly peened so the weld blends and visual lines remain clean.

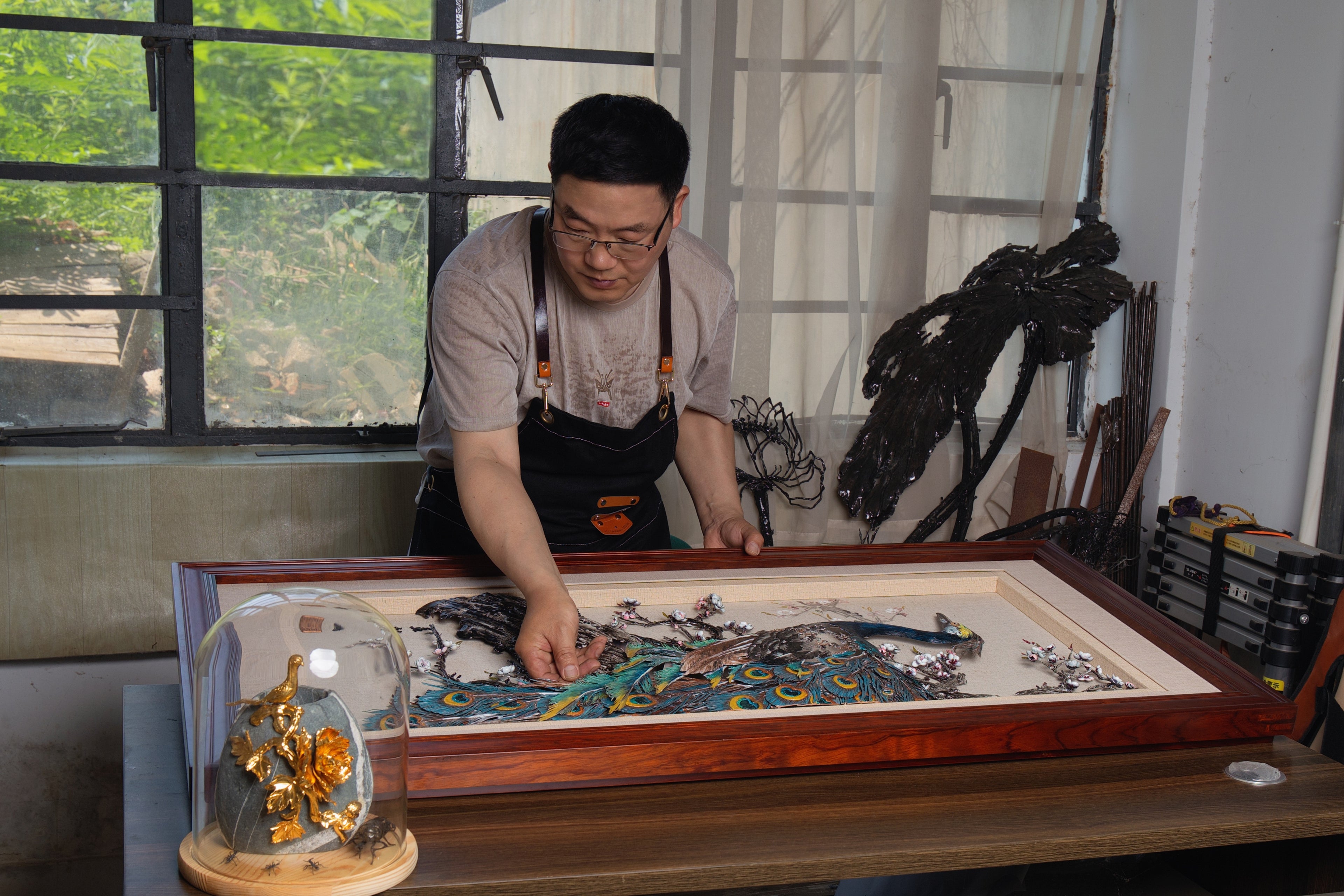

Overall adjustment:
Composition is reviewed for balance (branch density, landscape layering). Misalignments are corrected with secondary forging or re-welding to match the original intent.
V. Finishing & Protection
After assembly, finishing sharpens details and protects the work for long-term display.

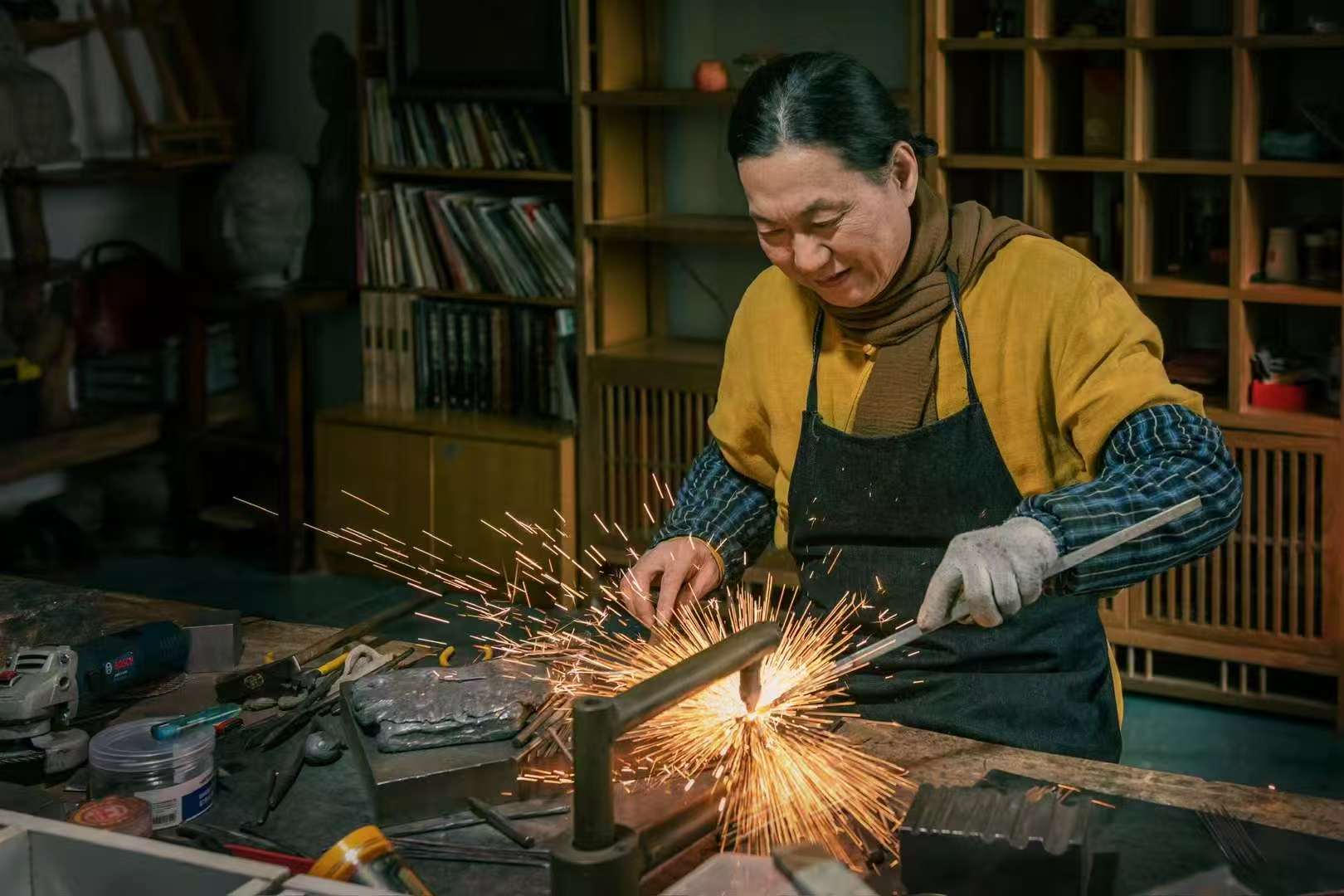

Sanding & detailing:
Surfaces and seams are dressed with files and abrasives to remove hammer marks and spatter, yielding smooth lines. Fine features (veins, calligraphy strokes) are crisped for clarity.
Anti-rust treatment:
Traditional heat bluing/blackening (kaolan, typically 200–300 °C) forms a dark oxide film, often followed by tung oil or clear lacquer. Contemporary options include electroplating (nickel, chrome) or powder coating, which resist corrosion while preserving a metallic look. Works favoring a classical aesthetic often use bluing plus tung oil for an understated, inky sheen.
